High Specification Stock Unit, MX13 530hp, 4.15m wheelbase, Sliding 5th wheel, Anderson Cable, PTO Prep, 3+3 warranty, Dura-Brites Available immediately from Group stock, excellent value and high specification.
Cab exterior
- XG cab
- Chassis front execution: bottom plate
- Cab suspension mechanical
- External sun visor
- Cab step rigid
- Air horns, prepared
- LED head, cornering and fog lights
- Head lights without levelling device
- Head light beam for left-hand traffic
- LED daytime running lights
- LED Skylights; aux. LED lights on cab rf, prepared
- Two LED work lamps for cab rear wall
- Hazard beacons on cab front, prepared
- Grip + surround + side wall: cab colour
- Front windscreen
- Kerb view window co-driver door
- Tempered glass
- DAF Digital Vision System
- DAF Corner View
- Rear view camera
- Central door lock system, 3 keys, 2 RC units
Aerodynamics - Adjustable roof air deflector for XG cab
- Side collars, both sides hinged
Colours
- Cab colour: E1980WHTE
- Lower cab step Crystal White
- Colour roof air deflector: Crystal white
- Colour of side collars: Crystal white
- C4P500GRY Chassis colour grey
- Colour of housing DDVS: Crystal White
- Colour of head lamp panel: Crystal White
- Colour of bumper: Crystal White

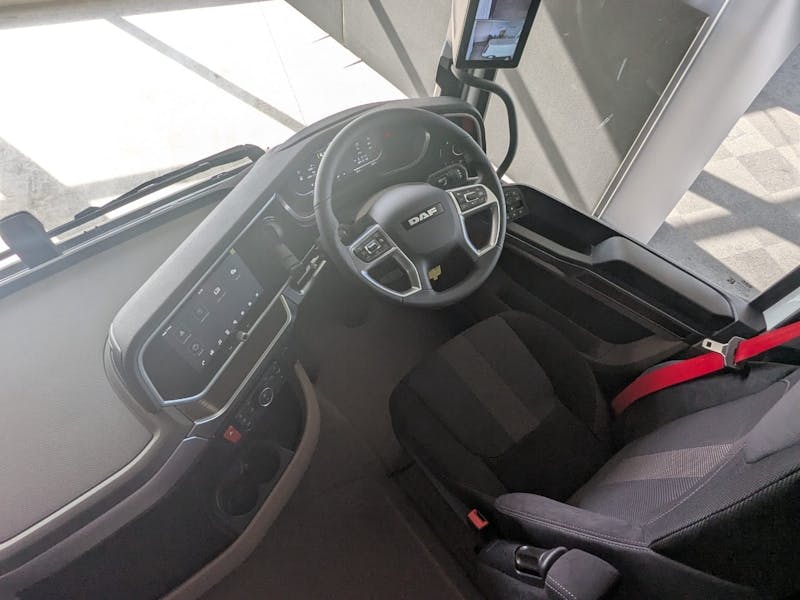

Cab interior
- Right-hand drive (RHD)
- Steering wheel, leather
- Cab interior trim colour: Exclusive
- Dashboard finish: Plateau
- Cab interior decoration: Natura
- Door covering: soft woven fabric
- Cab wallcovering textile
- Driver seat: Super Air
- Arm rest at both sides of the driver seat
- Driver seat, swivel base
- Co-driver seat: cinema + table; fabric cover
- Co-driver seat, fixed base
- Seat belts red
- Dashboard table
- Storage compartment with drawer in centre
- Two refrigerators
- Preparation for air blow gun
- Xtra Comfort mattress with topper for lower bunk
- Luggage carrier
- Protection net upper bunk / luggage carrier
- Curtains, without dividing curtain
- Interior LED lighting
- Automatic Temperature Control and airco
- Aux cab heater with residual heat pump and timer
- Pollen filter
- Roof hatch, electric control
- Window openers: electric
- Accessory power supply: standard + 2x 40A
- ECAS remote control
Communication and driving
management
- FMS connector extended, prepared
- PACCAR Connect with navigation and tablet software
- Tachograph digital, VDO version G2V2A
- Speed limiter setting 90 km/h
- Infotainment incl. DAF Truck Nav. and tablet prep.
- Speakers: Exclusive
- Antennas: radio, 2x cellular, GNSS
- Adaptive Cruise Control with FCW and AEBS-3
- Predictive Cruise Control
- Driver Performance Assistant
- Wireless charger
Safety and security
- Speed limit recognition
- DAF drowsiness detection
- Lane Departure Warning System
- Vehicle Stability Control (VSC)
- Reverse warning
- Basic immobiliser
- Main switch chassis
- Drive-off Assist
- DAF Side & Turn Assist
- City Safety Package
- Alcohol interlock, prepared
- Compliant with UN Regulations R155 and R156
Suspension and axles
- Front: 8.00 t, parabolic, 165N
- Front axle 1, 8000 kg, tyre load index 156
- Front axle 2, 7500 kg, tyre load index 154
- Leading axle, steered
- Second front axle 150N
- Leading axle load 7.50t
- Stabilink rear suspension
- Rear axle load 12.10 t
- Rear: 19.60 t, air suspension, SR1347
- Rear axle 1, 12300 kg, tyre load index 147
- Axle load ratio 11.5/7.1
- Load limiter 11.5 t
- Single driving height position, standard height
- Front suspension leaf: medium
- Lifting device
- Manual control lifting device

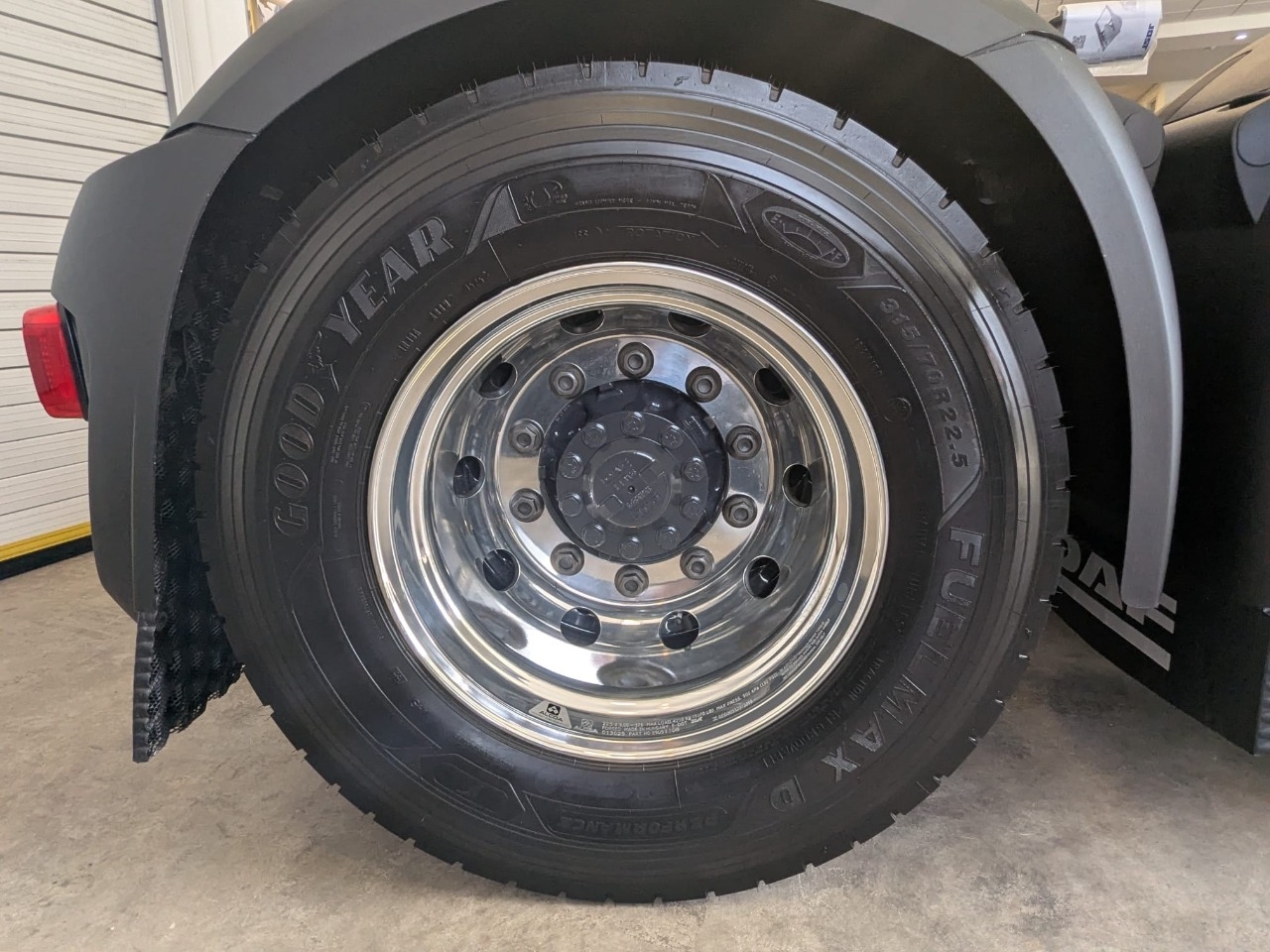

Wheels and tyres
- Front axle(s): 315/70R22.5
- Second front or leading axle: 315/70R22.5
- Driven rear axle(s): 315/70R22.5
- Goodyear
- Tyre pressure monitoring
- Alu Alcoa Dura-Bright 32 mm
- Wheel protection rings silvergrey
- F1,315/70R22.5GO EQMSU 158/150 L Steering ABA 3P
- F2,315/70R22.5GO EQMSU 158/150 L Steering ABA 3P
- R1,315/70R22.5GO EQMDU 154/150 L Traction ABB 3P
- SP, not applicable
Driveline
- Engine MX-13, 390 kW/530 hp. Cab Badge: 530
- Exhaust emission Euro 6
- Eco performance
- Engine idle shutdown, 5 minutes
- Automated gearbox, TraXon, 12 speeds
- 12-speed TraXon 12TX2620 DD, 16.69-1.00
- Manoeuvring mode
- Traction aid 15.0 t
- Automated gearbox with manual control - Full vers
- Standard transport, Full version
- Rear axle ratio 2.40
- Mechanical differential lock
- ASR
- OBD-E engine H6 fuel B7
Brake system
- MX Engine Brake
- Park brake control pneumatic with spoken warning
- Spring brake cylinders on the first front axle
- Compressor 2 cylinders with clutch
- Driven rear axle with disc brakes
Chassis
- Wheelbase 4.15 m / rear overhang 0.99 m
- Side member 260/7.0 mm, front reinforcement
- Exhaust pipe horizontal, low
- Exhaust discharge to the right-hand side
- EAS unit RH, batt box in AE, 85L AB on mudgrd LH
- 1 circuit steering system
- EU steering certificate
- Air tanks steel
- 580 l alu fuel tank with step LH, height 700 mm
- Fuel tank left
- Front underrun protection (FUP)
- Catwalk with step, extra long
- Catwalk step left-hand side
- Rear mudguards
- Spray suppression
- Two wheel chocks
- Work lamp LED
- Rear light with LEDs
Drawbar and trailer equipment
- JOST JSK36D slider pressed steel 263mm
- King pin diameter 2 inches
- Fifth wheel KA dimension 770 mm
- Lead-up ramps
- Pneumatic trailer connection C-type
- El tr conn 24V/2x7 pins, cbls: 2x7 pins + EBS
- Sliding fifth wheel: mechanical operation
Bodies and preparations for
bodying
- Hardwired body signals and warnings
- Hardwired engine speed control connector chassis
- Preparation for aftermarket switches
- Additional spare wiring
- Air control preparation for tipper application
- Application connector flexible
- Tail lift connection Anderson
- Chassis preparation standard
Power take-off (PTO) - Hardwired gearbox PTO control,no first gearbox PTO
24V power supply - Alternator 150 A, batteries 2x 210 Ah AGM
- Battery Energy Monitoring
GVM and GCM - Chassis weight related technical GVM max 27000 kg
- Driveline related max GCM 44000 kg class 2
Application conditions
- Application class 10
- Standard noise level
- Regular cab insulation
- Maximum ambient temperature 38 degrees
- Integrated heated fuel filter
- Air intake front
- Anti-dust blow-up shield
Service and maintenance
- Standard Warranty - 1Y Full - 2nd year DL - 1Y BD
- ITS service
- Warranty Plus - 3 Year Vehicle 3 Year Driveline
- DAF 2 year Full Repair & Maintenance Package-320k
- Service interval standard
- Delivery charge United Kingdom
- Parts used for manufacturing contain SVHCs
